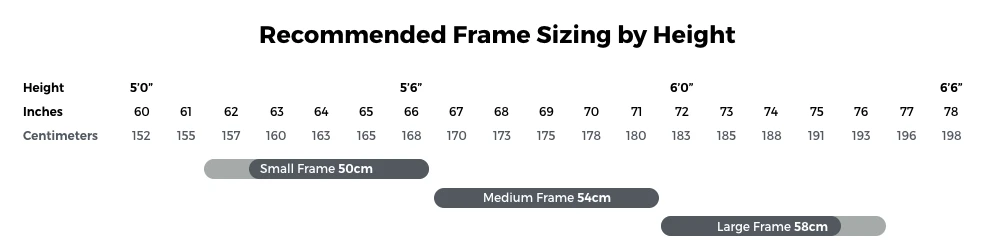

Advanced Sizing Guide & Bicycle Geometry

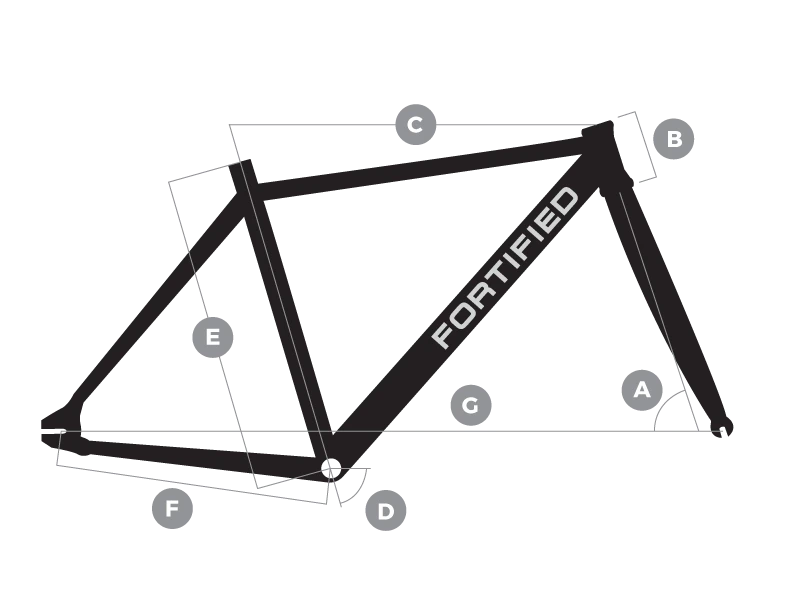

Bicycle Geometry

INVINCIBLE 1Speed

INVINCIBLE 8Speed

Size:	1Speed Small 50cm:	1Speed Medium 54cm:	1Speed Large 58cm:	8Speed Small 50cm:	8Speed Medium 54cm:	8Speed Large 58cm:
A - Fork Rake:	72.5°	72.5°	72.5°	72.5°	72.5°	72.5°
B - Headtube Length:	105 mm	105 mm	105 mm	105 mm	105 mm	105 mm
C - Top Tube Length:	578 mm	588.3 mm	601.4 mm	578 mm	588.2 mm	599.7 mm
D - Seat Tube Angle:	74°	74°	74°	74°	74°	74°
E - Seat Tube Length:	500 mm	540 mm	580 mm	500 mm	540 mm	580 mm
F - Chain Stay Length:	435 mm	435 mm	435 mm	435 mm	435 mm	435 mm
G - Wheelbase:	1057.7 mm	1068 mm	1079.7 mm	1057.8 mm	1068 mm	1079.8 mm
Standover Height:	770 mm	790 mm	820 mm	770 mm	790 mm	820 mm
